My Second Motorcycle, A 2010 Honda Goldwing
Purchased August 2016:
I've been drooling over the Goldwing for the last few years, and finally pulled the trigger and picked up a used model at a local dealership. It had just over 68k miles on it, and already had the brake recall performed, and a brand new rear tire installed. Unfortunately, it is missing the CB radio and cell phone integration I had installed on the XS1100. I have managed to connect my cell phone's sound output to the Wing's AUX connection, and mounted my RAM X-Grip to the clutch resevoir. The integrated heated grips and seats will make my winter riding more comfortable, but I need to try to find a way to get the Hippo Hands to work with the RAM mount on the bars.
GL1800 Brakes - A complicated machine:

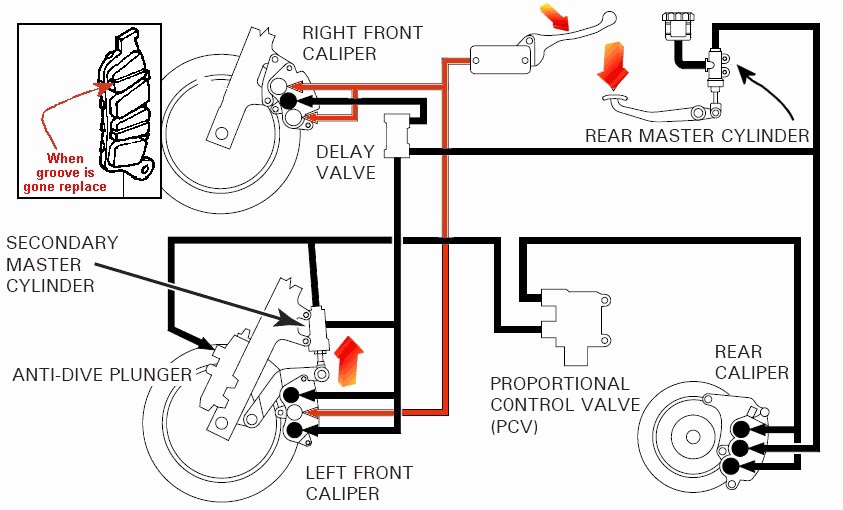

The Goldwing has a feature that is similar to my old Yamaha - linked brakes. On most motorcycles, when you squeeze the front brake lever, it actuates both front brake calipers, and pressing the brake pedal actuates the rear caliper. Sounds simple, right? Well, with the Goldwing, it's not so much. Squeezing the front brake lever DOES actuate the front calipers, but if the bike is moving, this will lift the left front caliper enough to activate a "Secondary Master Cylinder". This is connected to a proportional control valve, that then activates the outer two pistons on the rear caliper! If the bike is not moving, no pressure is sent to the rear caliper by using the front brake lever. If the rear brake pedal is used, it does activate the center piston on the rear caliper, but also connects to a delay valve which then activates both front calipers! Here's a picture I found that explains it:
Resources for riders:
Click the following links to download:Honda GL1800 Service Manual
I have noticed that about 50% of the searches that lead to this site are looking for Triumph information. I don't pretend to know anything about Triumphs, but I do have a section of manuals and other information about a few of them located here.
If you have a document or resource that you think would benefit other readers of this page, or you have comments or questions about the documents listed here, please E-MAIL ME, and let me know. I do actually read and answer your emails, usually the same day!
Interested in helmet safety? I did some research. CLICK HERE to read what I found!
Running Total of MODs I've Performed:
RAM X-Grip Cell Phone Mount
